Pluggable screw-free connectorsDKPGF-635-XXP
DKPGF-635-XXP
6.35mm
| Approval |
|
| Category | Screw pluggable connector |
| Model | DPGF-508NQ/1-D32 |
| Pitch | 5.08mm |
| Poles | 32P |
| Product application | Suitable for 4U case |
| Pitch[mm] | 5.08 |
| PCB hole diameter[mm] | |
| Pin dimensions[mm]x[mm] | |
| Technical data in accordance with IEC/DIN and VDE | |
| Rated voltage/Nominal current[V]/[A] | 250/6 |
| Surge voltage[kV] | 5.0 |
| Withstanding voltage/Current breakdown[VAC/min]/[A/S] | 2500/500 |
| Insulation Resistance/contact Resistance[MΩ]/[mΩ] | ≥500/≤20 |
| Capacity connection | |
| Cross section[mm2] | 0.5-2.5 |
| Outside connection | after connecting European cold pressing tip |
| Stripping length[mm] | 12 |
| Insulating material | PBT+GF |
| Inflammability class in acc.with UL 94 | V0 |
| Specification of flange thread | M2.5x18(standard) |
Joinect provides samples for user experience

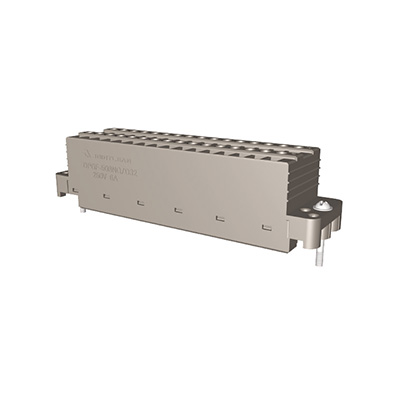

DPGF-508NQ/1-D32
